Owl System
Release time:
2024-01-24
According to the prison's demand for resisting low-altitude drone invasion/ground suspicious moving target invasion and destruction/behavior management of prisoners inside the prison area, the drone decoy equipment architecture of radar passive detection omnidirectional jamming equipment is designed through an integrated structure to build a prison three-dimensional defense system.
System Introduction
According to the prison's demand for resisting low-altitude drone invasion/ground suspicious moving target invasion and destruction/behavior management of prisoners inside the prison area, the drone decoy equipment architecture of radar passive detection omnidirectional jamming equipment is designed through an integrated structure to build a prison three-dimensional defense system.
System features
1. No construction/convenient erection
Through the structured design, the installation is convenient, no site construction is required, and the power-on connection terminal can be put into use after completing the equipment erection in 20min;
integrated design
Highly integrated, scientific integration of anti-UAV system equipment to ensure stable and reliable equipment
Spectrum Detection
According to the current technical level, it can solve the problem of mainstream unmanned aerial vehicles such as Dajiang (80%)
radar detection
It can effectively solve the detection problem of all types of multi-form and multi-brand unmanned aerial vehicles.

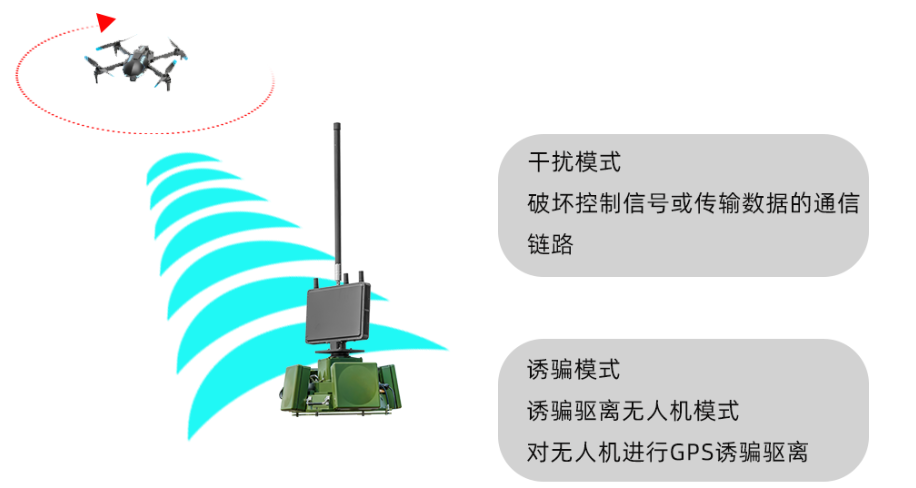

navigation decoy
Adopt more advanced navigation deception scheme to control the UAV, and dispose of the UAV without destruction as much as possible, and effectively solve the problems such as navigation disturbance:
electromagnetic interference
As the last protection means within 500 meters of the system, terminal protection is carried out under the premise of non-disturbing transmission power.
Product Parameters

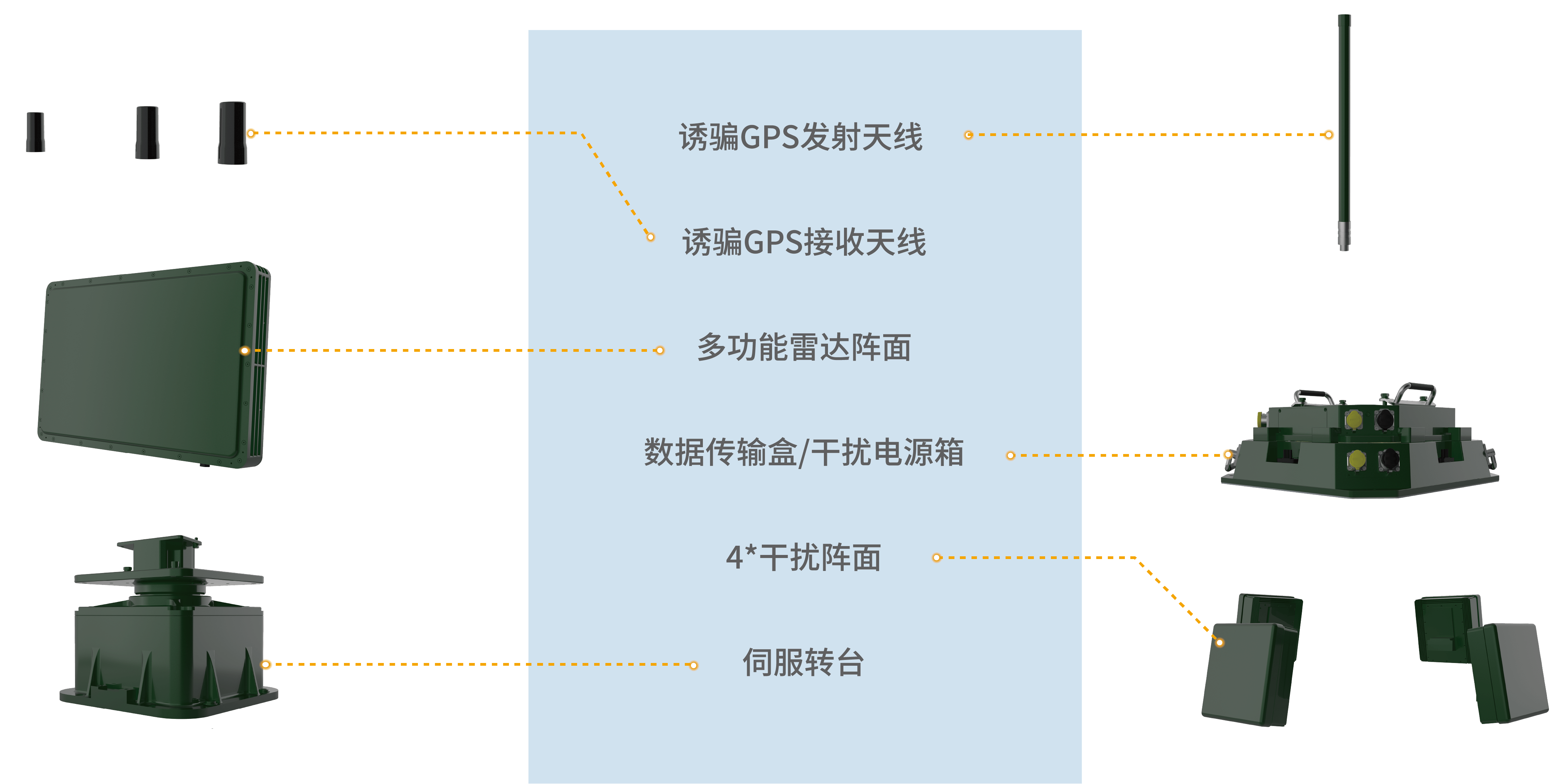

Standard configuration: integrated anti-UAV system (radar, spectrum, interference, deception, central command platform)
Detection type: all kinds of sports UAV
Active Band: 5400-5600MHz
Passive bands: 2400-2500MHz,5725-5850MHz (scalable)
Decoy frequency band: 1575.42MHZ ± 1.023MHZ(GPS-L1)
1602MHz N*5625kHz 511kHZ(N取-7-6)(GLONASS-L1)
Interference bands: 1560-1620MHz,2400-2500MHz,5150-5850MHz (scalable)
Coverage: 360 °
Detection radius: 1.5km
Effective countermeasures distance: 0.5-1km
Size (after expansion):1500mmX1500mmX2800mm
Weight: ≤ 30kg (equipment) ≤ 10kg (tripod)
Wind strength: 6 wind
Working temperature:-40~55 ℃
Operating humidity:<95%
Data interface: RJ45
Power interface: 220V
Power consumption: ≤ 100W (detection mode)
≤ 600W (counter-control mode)
Erection completion time: 15min
Packing: 3 boxes
Platform functions: real-time detection, automatic counter-system, manual counter-system, GIS map data storage, event query
APP functions: event push, automatic counter-system, manual counter-system, GIS map, event query
