XW/SR215-1200C Xuanwu Series-Ground Security Radar
Pedestrian: 0.8km Vehicle: 1.2km Working system: phased array system (azimuth scanning)/pulse Doppler Product composition: 1 radar array and 1 power adapter Application: Mainly used for detection, warning and target indication of pedestrians and vehicles in key areas such as borders, perimeters, checkpoints and military bases, and can accurately give track information such as the orientation, distance and speed of the target.
1.2 km
0.8 km
Classification:
- Product Description
- Product Characteristics
- Product Index

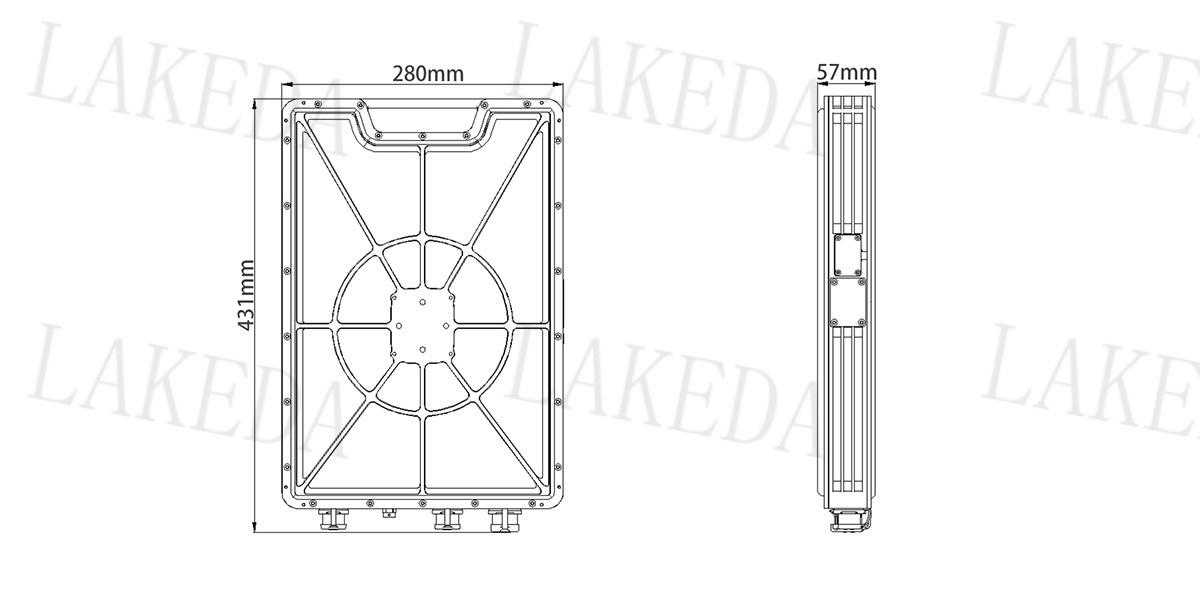

- Product Size
- Detection Range
-
- Commodity name: XW/SR215-1200C Xuanwu Series-Ground Security Radar
- Frequency Band: C-band
- Pedestrian: 0.8 km
- Vehicle: 1.2 km
- Work system: Phased array system (azimuth phase sweep)/pulse Doppler
- Working frequency band: C- band
- Range: 1.5km
- Effective detection power: 100m ~ 0.8km (pedestrian) 100m ~ 1.2km (vehicle)
- Azimuth coverage: ≥ 90 °
- Elevation coverage: ≥ 18 °
- Detection speed: 0.5m/s～30m/s
- Azimuth accuracy: ≤ 1.0 °
- Pitch accuracy: -
- Distance accuracy: ≤8m
- Data Rate: ≥ 2Hz
- Data Interface: RJ45/1 channel 100 Gigabit Ethernet
- Power Input: ≤ 45W (power consumption) AC220V ~ 240V (input)
- Working temperature: -40 ℃ ~ 55 ℃
- Weight: ≤ 5.5kg
Pedestrian: 0.8km Vehicle: 1.2km Working system: phased array system (azimuth scanning)/pulse Doppler Product composition: 1 radar array and 1 power adapter Application: Mainly used for detection, warning and target indication of pedestrians and vehicles in key areas such as borders, perimeters, checkpoints and military bases, and can accurately give track information such as the orientation, distance and speed of the target.
XW/SR215-1200C radar is mainly composed of a radar array and a power adapter. Active phased array radar using MIMO system and DBF technology is mainly used for detection, warning and target indication of pedestrians and vehicles in key areas such as borders, perimeters, checkpoints and military bases, and can accurately give track information such as orientation, distance and speed of the target.
The XW/SR215-1200C radar is an efficient and advanced radar system used for security at critical areas such as borders, perimeters, checkpoints and military bases. The radar is mainly composed of two parts: radar array and power adapter, which uses MIMO system and DBF technology, is an active phased array radar.
The core part of the radar, the radar array, is the "eye" of the system, responsible for capturing and identifying targets. It uses advanced phased array technology, with fast scanning and data processing capabilities. The array can automatically track multiple targets, no matter how the target moves, can accurately capture. At the same time, the application of MIMO system makes the radar have stronger anti-jamming ability and data transmission rate in complex environment.
DBF technology is the "smart brain" of radar, which realizes accurate identification of targets through digital beam forming technology. This technology can significantly improve the resolution and anti-jamming ability of the radar, so that the radar can more accurately obtain the key information such as the orientation, distance and speed of the target when detecting pedestrians, vehicles and other targets.
In addition to an efficient radar array and advanced technology, the XW/SR215-1200C radar includes a power adapter. This adapter can ensure the stable operation of the radar in various environments and is not affected by power fluctuations. This is critical for radar systems deployed in complex environments.
Overall, the XW/SR215-1200C radar is an advanced radar system that combines high technology and practicality. Its powerful detection capability, accurate target recognition technology and stable operation performance make it an ideal choice in the field of security alert. Whether at borders, perimeters, checkpoints or military bases, it can play an excellent role in detection and vigilance and provide strong support for security. Its excellent performance is not only reflected in the theoretical data, but also shows strong strength in practical applications, which provides a reliable guarantee for the safety of important areas. This radar is undoubtedly an important technological achievement in the field of modern security. -
real-time monitoring
Monitor the surrounding environment, identify and respond to abnormal conditions in a timely manner
Fast target monitoring ability
High data refresh rate, for fast moving targets, can continue to track the target.
Wide coverage
It can cover a large area, and multiple radars can also be arranged in series to further expand the monitoring range and realize seamless supervision of key regional defense areas such as borders, perimeters, checkpoints, and military bases.
Erection is simple
Erection is convenient and can be completed using light poles or original infrastructure.
All-weather all day
All-weather 24h real-time protection, adapt to rain, snow, fog, haze and other bad weather
-
Working frequency band
C- band
Pedestrian
0.8km
Vehicle
1.2km
Vessels
--
Drone
--
work system
Phased array system (azimuth phase sweep)/pulse Doppler
Range
1.5km
Effective detection power
100m ~ 0.8km (pedestrian) 100m ~ 1.2km (vehicle) Azimuth coverage
≥ 90 °
elevation coverage
≥ 18 °
Detection speed
0.5m/s~30m/s azimuth accuracy
≤ 1.0 °
Pitch accuracy
--
Distance accuracy
≤8m
Data Rate
≥ 2Hz
Data Interface
RJ45/1 channel 100 Gigabit Ethernet Power Input
≤ 45W (power consumption) AC220V ~ 240V (input) Working temperature
-40°C ~ 55°C Weight
≤ 5.5kg -
-
Detection distance
Pedestrian
≥ 0.8km
Vehicle
≥ 1.2km
Vessels
Not applicable
Drone
Not applicable
