Thunder Shield Fish Protection System
Release time:
2024-01-24
Thunder Shield Fishery Protection System - Sea Steward (hereinafter referred to as Thunder Shield Fishery Protection) is an intelligent terminal software developed by our company for smart aquaculture (marine ranching) applications. By integrating and analyzing detection information from front-end high-resolution radar and other intelligent sensors, and enabling intelligent linkage, it achieves the industry's lowest false alarm rate and the best level of intelligent classification alarms under all weather conditions.
System Introduction
LeiDun Fishery Protection System - Sea Guardian (hereinafter referred to as LeiDun Fishery Protection) is an intelligent terminal software developed by our company for smart aquaculture (marine ranching) applications. By integrating and analyzing detection information from front-end high-resolution radar and other intelligent sensors, and enabling intelligent linkage, it achieves the industry's lowest false alarm rate and the best level of intelligent classification alarms under all weather conditions.
The LeiDun Fishery Protection System pioneers event management-centered business functions including target detection, linked tracking, snapshot evidence collection, intelligent early warning, and event playback. The front-end devices are connected through our certified "Xuanwu" series, featuring high-resolution security radars and mainstream advanced PTZ electro-optical devices, characterized by easy installation and user-friendly operation.
System Functional Features
1. Target Detection
2. Event Playback
3. Early Warning Control
4. Video Evidence Collection
5. Early Warning Review
6. Black and White Lists
Practical Application Features
1. High Data Rate
MIMO radar system data rate can reach up to 9Hz, making radar and electro-optical linkage more stable and continuous, providing users with a better experience;
Easy Installation
2. The equipment features low weight, low power consumption, and universal network interfaces, with strong adaptability to installation environments. It can be conveniently and quickly installed using common clamp mounts or universal camera mounting brackets;
3. Strong Compatibility
The system is compatible with mainstream electro-optical camera brands (Hikvision, Dahua, Uniview, Shenrong, HopeVision, Gaopule, etc.), facilitating comprehensive linkage for users;
4. Flexible Deployment
The equipment can be flexibly deployed to effectively avoid blind spots. For example, the SR501 radar covers an area of 20 square kilometers with a 90-degree azimuth, capable of detecting fishing boats within a 5-kilometer radius at 10 meters, providing multi-angle, no-blind-spot coverage in complex environments.

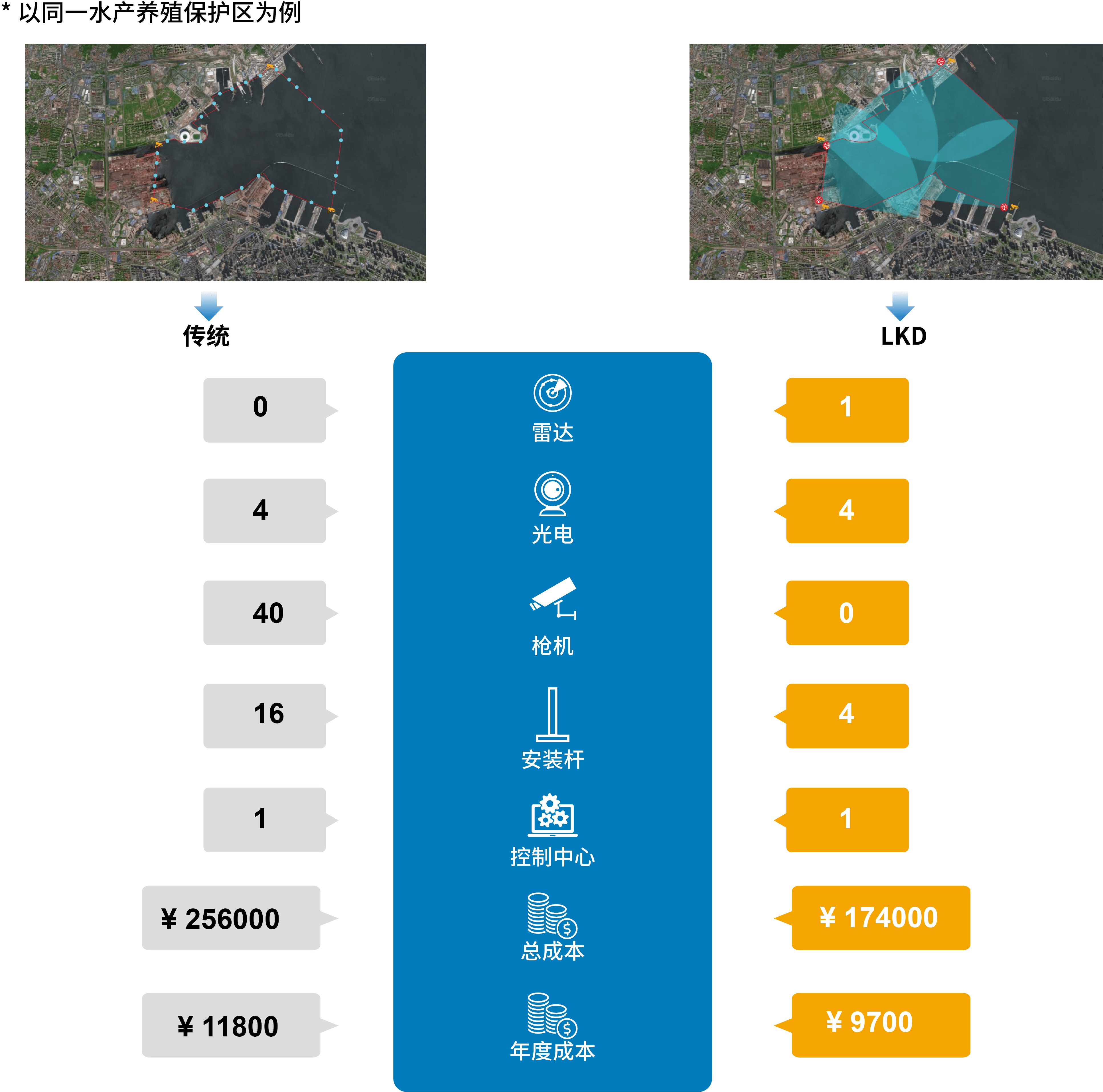

System Advancement: High Cost-Effectiveness
1. Actively detects within the radar coverage area, outputting real-time distance, azimuth, speed, and other information.
2. Due to the wide coverage of radar, using this system can significantly reduce the number of cameras, thereby improving system reliability and security.
3. Reduces the number of on-duty personnel by enabling automatic radar detection and alarms, effectively lowering costs.
Case Studies (Folder)
Fishery Protector (Image in folder)
View Anytime, Anywhere
Real-time Alarm Information Push
Timely Allocation of Alarm Events
Supports Remote Device Control
Price Reference
Working Logic
RELATED
Related Equipment
