XW/SR226-5000S Xuanwu series-low altitude security radar

UAV: 5.0km Working system: phased array system (azimuth machine sweep pitch phase sweep)/pulse Doppler Product composition: 1 radar array, 1 mechanical turntable and 1 power adapter Application field: mainly used in prisons, exhibitions, military bases and other key areas of micro/small civilian UAV detection, warning and target indication, can accurately give the target's location, distance, altitude and speed and other track information.

Classification:

XW Series-Low Altitude Security Radar

Product Description
Product Characteristics
Product Index

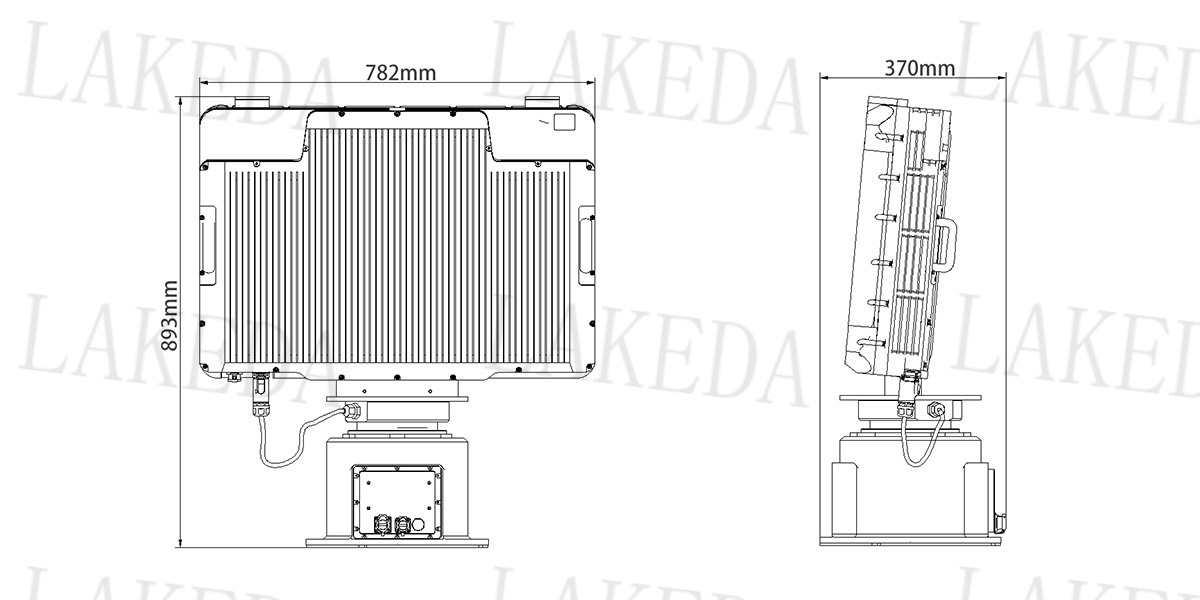

Product Size
Detection Range

- Commodity name: XW/SR226-5000S Xuanwu series-low altitude security radar
- Frequency Band: S-band
- Unmanned Aerial Vehicle: 7.0 km
- Work system: Phased array system (azimuth machine sweep pitch phase sweep)/pulse Doppler
- Working frequency band: S-band
- Range: 10.2km
- Effective detection power: 100m ~ 5.0km (UAV)
- Azimuth coverage: 360°
- Elevation coverage: ≥ 40 °
- Detection speed: 0.5m/s～30m/s
- Azimuth accuracy: ≤ 1.0 °
- Pitch accuracy: ≤ 1.0 °
- Distance accuracy: ≤10m
- Data Rate: ≥ 0.2Hz
- Data Interface: RJ45/1 channel 100 Gigabit Ethernet
- Power Input: ≤ 250W (power consumption) AC200-AC240 (input)
- Working temperature: -40 ℃ ~ 55 ℃
- Weight: ≤ 45kg
UAV: 5.0km Working system: phased array system (azimuth machine sweep pitch phase sweep)/pulse Doppler Product composition: 1 radar array, 1 mechanical turntable and 1 power adapter Application field: mainly used in prisons, exhibitions, military bases and other key areas of micro/small civilian UAV detection, warning and target indication, can accurately give the target's location, distance, altitude and speed and other track information.

XW/SR226-5000SIt is a device that integrates advanced technology and consists of a radar array, a mechanical rotary table and a power adapter.It is mainly composed of a radar array, a mechanical rotary table and a power adapter. It is used for the detection, warning and target indication of micro/small civilian UAVs in key areas such as borders, airports and military bases. It can accurately give the track information such as the orientation, distance, altitude and speed of the target.

It is widely used in the surveillance of micro and small civilian UAVs in important areas such as borders, airports and military bases. The device can quickly detect the position of the UAV, provide accurate warning and target indication, not only give the position and distance of the UAV target in real time, but also accurately measure its altitude and speed and other track information. Its stable performance and convenient operation can effectively improve the efficiency and accuracy of UAV monitoring, and provide strong support for ensuring air safety. Whether it is in complex and changing environments or high-speed moving targets, XW/SR226-5000S can show excellent performance.
omni-directional detection

360 ° omni-directional detection, real-time tracking of the target, while the output of the target three-coordinate information

Strong adaptability to environment

With the ability to work all day long, adapt to the night, rain and snow, haze, dust and other harsh environment

High flexibility

Remote detection of targets, easy to set up

DBF Technology

DBF technology transmitting multi-beam technology can improve anti-interference ability

High cost performance

Through the continuous polishing of the product, while ensuring the detection effect, the perfect combination of product reliability, usability and economy is achieved.

Working frequency band	S-band
Pedestrian	--
Vehicle	--
Vessels	--
Drone	5.0km
work system	Phased array system (azimuth machine sweep pitch phase sweep)/pulse Doppler
Range	10.2km
Effective detection power	100m ~ 5.0km (UAV)
Azimuth coverage	360°
elevation coverage	≥ 40 °
Detection speed	0.5m/s~30m/s
azimuth accuracy	≤ 1.0 °
Pitch accuracy	≤ 1.0 °
Distance accuracy	≤10m
Data Rate	≥ 0.2Hz
Data Interface	RJ45/1 channel 100 Gigabit Ethernet
Power Input	≤ 250W (power consumption) AC200V ~ 240V (input)
Working temperature	-40°C ~ 55°C
Weight	≤ 45kg
