XW/SR226-3100X Xuanwu Series-Low-altitude Security Radar
UAV: 2.0km Working system: phased array system (azimuth machine sweep pitch phase sweep)/pulse Doppler Product composition: 1 radar array, 1 mechanical turntable and 1 power adapter Application field: mainly used in prisons, exhibitions, military bases and other key areas of micro/small civilian UAV detection, warning and target indication, can accurately give the target's location, distance, altitude and speed and other track information.
Classification:
- Product Description
- Product Characteristics
- Product Index

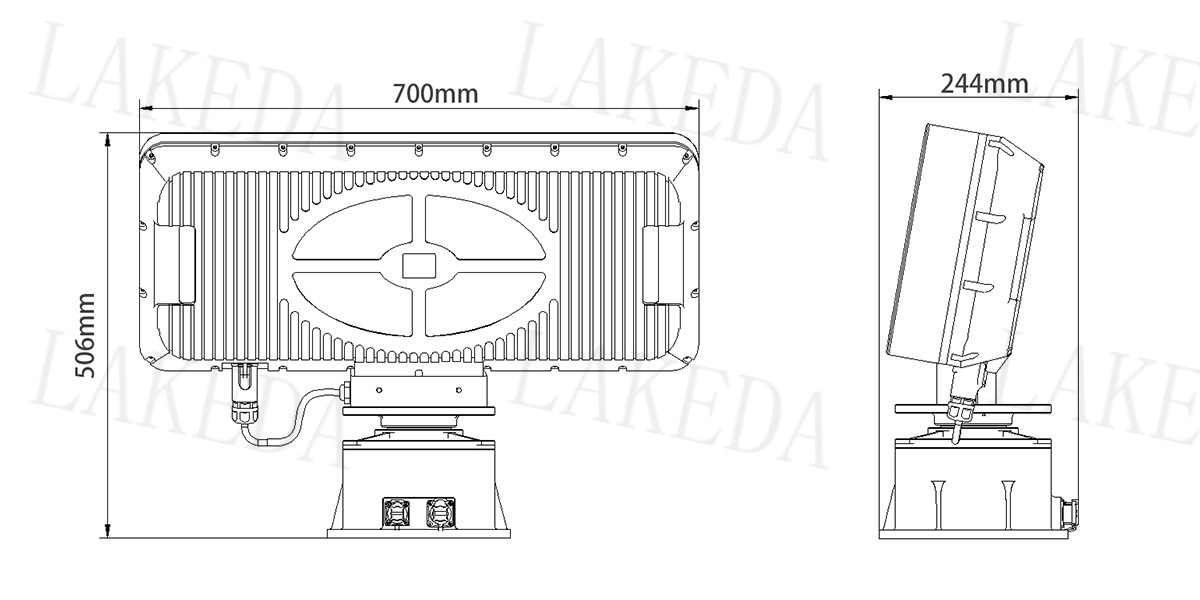

- Product Size
- Detection Range
-
- Commodity name: XW/SR226-3100X Xuanwu Series-Low-altitude Security Radar
- Frequency Band: X-band
- Unmanned Aerial Vehicle: 2.0 km
- Work system: Phased array system (azimuth machine sweep pitch phase sweep)/pulse Doppler
- Working frequency band: X-band
- Range: 3.1km
- Effective detection power: 100m ~ 2.0km (UAV)
- Azimuth coverage: 360°
- Elevation coverage: ≥ 40 °
- Detection speed: 0.5m/s～30m/s
- Azimuth accuracy: ≤ 0.8 °
- Pitch accuracy: ≤ 1.0 °
- Distance accuracy: ≤10m
- Data Rate: ≥ 0.2Hz
- Data Interface: RJ45/1 channel 100 Gigabit Ethernet
- Power Input: ≤ 200W (power consumption) AC200-AC240 (input)
- Working temperature: -40 ℃ ~ 55 ℃
- Weight: ≤ 30kg (complete machine)
UAV: 2.0km Working system: phased array system (azimuth machine sweep pitch phase sweep)/pulse Doppler Product composition: 1 radar array, 1 mechanical turntable and 1 power adapter Application field: mainly used in prisons, exhibitions, military bases and other key areas of micro/small civilian UAV detection, warning and target indication, can accurately give the target's location, distance, altitude and speed and other track information.
XW/SR226-3100XIt is an advanced micro/small civilian UAV detection system, suitable for security protection in key areas such as prisons, exhibitions, and military bases.
It consists of three main parts: radar array, mechanical turn table and power adapter.
The radar array is the core of the system and is responsible for detecting and tracking UAVs;
The mechanical turntable ensures the flexible rotation of the radar and realizes all-round monitoring.
The power adapter provides a stable power supply to ensure the continuous operation of the system.
The system can obtain real-time information of the UAV's position, distance, altitude and speed, provide accurate data for warning and target indication, and effectively ensure the safety of key areas.It can accurately give the track information such as the orientation, distance, altitude and speed of the target.
-
High real-time high precision
Real-time tracking, high target accuracy, continuous trajectory
Strong adaptability to environment
With the ability to work all day long, adapt to the night, rain and snow, haze, dust and other harsh environment
High flexibility
Remote detection of targets, easy to set up
DBF Technology
DBF technology transmitting multi-beam technology can improve anti-interference ability
omni-directional detection
360 ° omni-directional detection, real-time tracking of the target, while the output of the target three-coordinate information
-
Working frequency band
X-band
Pedestrian
--
Vehicle
--
Vessels
--
Drone
2.0km
work system
Phased array system (azimuth machine sweep pitch phase sweep)/pulse Doppler Range
3.1km
Effective detection power
100m ~ 2.0km (UAV) Azimuth coverage
360°
elevation coverage
≥ 40 °
Detection speed
0.5m/s~30m/s azimuth accuracy
≤ 0.8 °
Pitch accuracy
≤ 1.0 ° Distance accuracy
≤10m
Data Rate
≥ 0.2Hz
Data Interface
RJ45/1 channel 100 Gigabit Ethernet Power Input
≤ 200W (power consumption) AC200V ~ 240V (input) Working temperature
-40°C ~ 55°C Weight
≤ 30kg -
-
Detection distance
People
Not applicable
Car
Not applicable
Ship
Not applicable
Drone
100m～2.0km
