XW/SR226-2100C Xuanwu Series - Low Altitude Security Radar

Drone: 1.5km Operating System: Phased array system (azimuth scanning + elevation phase scanning) / Pulse Doppler Product Composition: Consists of 1 radar array, 1 mechanical turntable, and 1 power adapter Application Areas: Mainly used for detecting, alerting, and target indication of micro/small civilian drones in key areas such as prisons, exhibitions, and bases. It can accurately provide target azimuth, distance, altitude, speed, and other trajectory information.

  • Product Description
  • Product Characteristics
  • Product Index

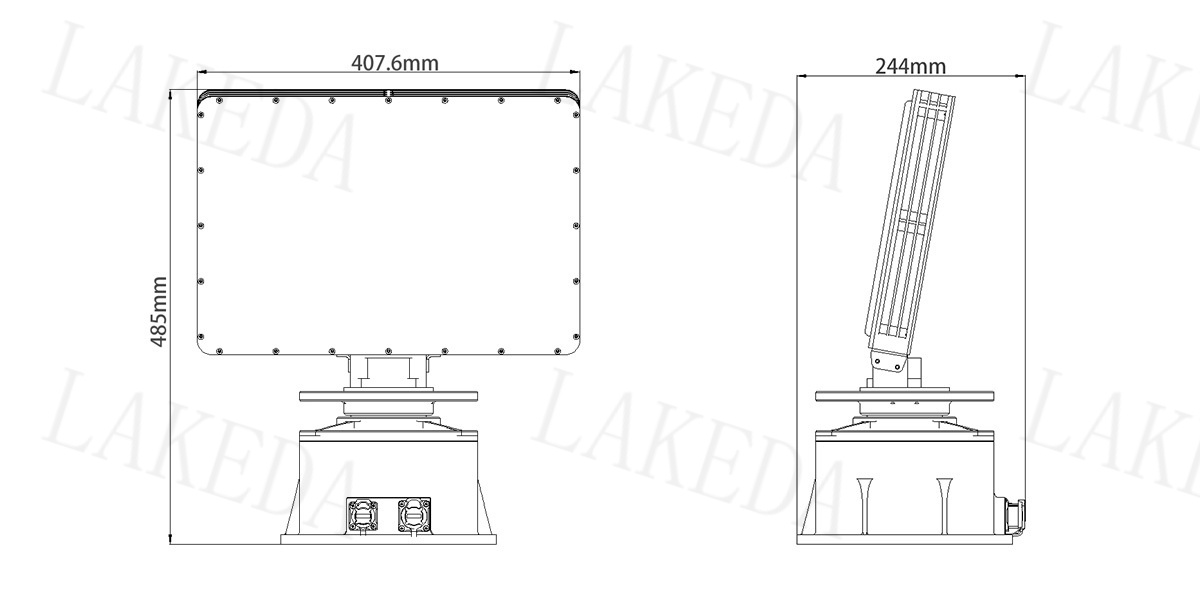

  • Product Size
  • Detection Range
    • Commodity name: XW/SR226-2100C Xuanwu Series - Low Altitude Security Radar
    • Frequency Band: C-band
    • Unmanned Aerial Vehicle: 1.5 km
    • Work system: Phased array system (azimuth scanning + elevation phase scanning) / pulse Doppler
    • Working frequency band: C-band
    • Range: 2.1km
    • Effective detection power: 100m to 1.5km (drone)
    • Azimuth coverage: 360°
    • Elevation coverage: ≥30°
    • Detection speed: 0.5m/s to 30m/s
    • Azimuth accuracy: ≤1.0°
    • Pitch accuracy: ≤1.0°
    • Distance accuracy: ≤10m
    • Data Rate: ≥0.2Hz
    • Data Interface: RJ45/1-port 100Mbps Ethernet
    • Power Input: ≤100W (Power Consumption) AC200-AC240 (Input)
    • Working temperature: -40℃ to +55℃
    • Weight: ≤15kg (whole machine)

    Drone: 1.5km Operating System: Phased array system (azimuth scanning + elevation phase scanning) / Pulse Doppler Product Composition: Consists of 1 radar array, 1 mechanical turntable, and 1 power adapter Application Areas: Mainly used for detecting, alerting, and target indication of micro/small civilian drones in key areas such as prisons, exhibitions, and bases. It can accurately provide target azimuth, distance, altitude, speed, and other trajectory information.

    The XW/SR226-2100C is an advanced micro/small civilian drone detection system, suitable for security protection in key areas such as prisons, exhibitions, and bases.

    It consists of three main parts: radar array, mechanical turntable, and power adapter.

    The radar array is the core of the system, responsible for detecting and tracking drones;

    the mechanical turntable ensures flexible rotation of the radar, achieving all-around monitoring.

    The power adapter provides a stable power supply to ensure continuous operation of the system.

    The system can obtain real-time trajectory information of drones such as azimuth, distance, altitude, and speed, providing accurate data for alerting and target indication, effectively ensuring the security of key areas. It can accurately provide trajectory information of targets including azimuth, distance, altitude, and speed.

  • High real-time and high precision

    Real-time tracking, high target accuracy, continuous trajectory

    Strong environmental adaptability

    Capable of all-weather, all-time operation, suitable for harsh environments such as night, rain, snow, fog, and dust

    High flexibility

    Long-distance target detection, easy to set up

    DBF technology

    DBF technology's multi-beam transmission can improve anti-interference capability

    Omnidirectional detection

    360° omnidirectional detection, real-time target tracking, simultaneously outputting target three-coordinate information

  • Operating Frequency Band

    C Band

    Pedestrian

    --

    Vehicle

    --

    Vessel

    --

    Drone

    1.5km

    Operating Mode

    Phased Array Mode (Azimuth Mechanical Scan + Elevation Phase Scan) / Pulse Doppler

    Range

    2.1km

    Effective Detection Power

    100m~1.5km (Drone)

    Azimuth Coverage

    360°

    Elevation Coverage

    ≥30°

    Detection Speed

    0.5m/s~30m/s

    Azimuth Accuracy

    ≤1.0°

    Elevation Accuracy

    ≤1.0°

    Range Accuracy

    ≤10m

    Data Rate

    ≥0.2Hz

    Data Interface

    RJ45 / 1 Port 100Mbps Ethernet

    Power Input

    ≤100W (Power Consumption) AC 200V~240V (Input)

    Operating Temperature

    -40℃~+55°C

    Weight

    ≤15kg



  • Detection Distance

    Person

    Not Applicable

    Vehicle

    Not Applicable

    Ship

    Not Applicable

    Drone

    100m~1.5km
