XW/SR237-5200C Xuanwu Series - Offshore Security Radar
Vessels: 5.0 km Operating System: Phased Array System (Azimuth Phase Scanning) / Pulse Doppler Product Composition: Consists of 1 radar array and 1 power adapter Application Field: Mainly used in offshore and inland river areas for monitoring vessel detection, warning, and target indication, capable of accurately providing target track information.
Classification:
- Product Description
- Product Characteristics
- Product Index

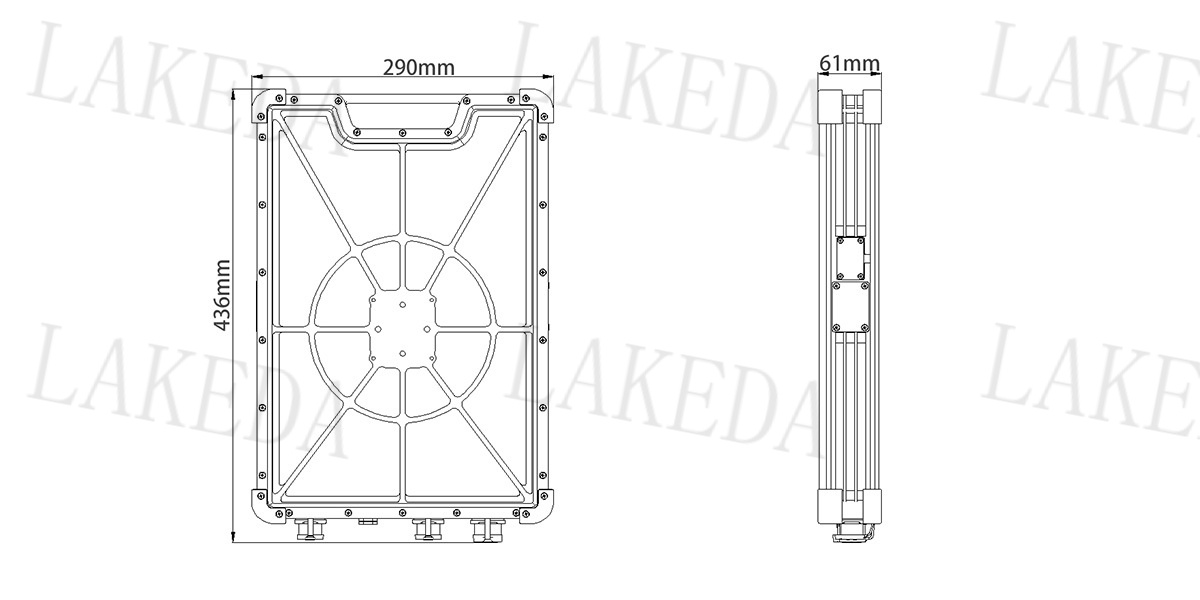

- Product Size
- Detection Range
-
- Commodity name: XW/SR237-5200C Xuanwu Series - Offshore Security Radar
- Frequency Band: C-band
- Vessels: 5.0 km
- Work system: Phased Array System (Azimuth Phase Scanning) / Pulse Doppler
- Working frequency band: C-band
- Range: 5.2km
- Effective detection power: 100m～5.0km (ships)
- Azimuth coverage: >=90°
- Elevation coverage: ≥18°
- Detection speed: 0.5m/s to 30m/s
- Azimuth accuracy: ≤1.0°
- Pitch accuracy: -
- Distance accuracy: ≤10m
- Data Rate: ≥2Hz
- Data Interface: RJ45/1-port 100Mbps Ethernet
- Power Input: ≤60W (Power Consumption) AC200-AC240 (Input)
- Working temperature: -40℃ to +55℃
- Weight: ≤5.5kg
Vessels: 5.0 km Operating System: Phased Array System (Azimuth Phase Scanning) / Pulse Doppler Product Composition: Consists of 1 radar array and 1 power adapter Application Field: Mainly used in offshore and inland river areas for monitoring vessel detection, warning, and target indication, capable of accurately providing target track information.
The XW/SR237-5200C radar system mainly consists of one radar array and one power adapter. It uses MIMO and DBF technologies to effectively eliminate false alarms and clutter. The product is primarily used in offshore and inland river areas to monitor ship detection, warning, and target indication, providing accurate target track information.
XW/SR237-5200C The radar is an advanced ship monitoring and warning device, mainly composed of a radar array and a power adapter.
It integrates MIMO and DBF technologies, significantly enhancing anti-interference capability and false alarm clutter suppression. This radar is especially suitable for offshore and inland river areas, capable of detecting and tracking ships as well as providing warning and target indication.
By precisely capturing target track information, it greatly improves the efficiency of ship safety monitoring. Its compact design and stable performance provide strong support for the safety and effective management of maritime traffic. Whether in ports, waterways, or offshore operation areas, XW/SR215-5200C the radar plays a crucial role.
-
Real-time monitoring
Monitor the surrounding environment, promptly detect and respond to abnormal situations
Strong rapid target detection capability
High data refresh rate, capable of continuously and stably tracking fast-moving targets
Wide coverage area
Can cover large areas; multiple radars can be linked in series to further expand the monitoring range, achieving seamless supervision of key areas such as borders, perimeters, checkpoints, and military bases
Easy installation
Convenient installation, can be mounted using lamp posts or existing infrastructure
All-weather, all-time
24/7 real-time protection, adaptable to various harsh weather conditions such as rain, snow, fog, and haze
-
Operating Frequency Band
C Band
Pedestrian
--
Vehicle
--
Vessel
5.0km
Drone
--
Operating Mode
Phased Array Mode (Azimuth Phase Scanning) / Pulse Doppler
Range
5.2km
Effective Detection Power
100m~5.0km (Vessel) Azimuth Coverage
≥90°
Elevation Coverage
≥18°
Detection Speed
0.5m/s~30m/s Azimuth Accuracy
≤1.0°
Elevation Accuracy
--
Range Accuracy
≤10m
Data Rate
≥2Hz
Data Interface
RJ45 / 1 Port 100Mbps Ethernet Power Input
≤60W (Power Consumption) AC220V~240V (Input) Operating Temperature
-40℃~+55°C Weight
≤5.5kg -
-
Detection Distance
Person
Not Applicable
Vehicle
Not Applicable
Ship
100m～5.0km
Drone
Not Applicable
