Future Development Trends of Anti-Drone Radar: Dual Evolution of Technological Breakthroughs and Scenario Innovations
Release time:
2025-08-29
Counter-UAV radar technology is currently in a critical phase of rapid iteration. As UAV threats evolve from individual units to swarms, miniaturization, and intelligence upgrades, their defense technologies also exhibit distinct multidimensional breakthroughs. From battlefield practical needs to civilian security assurance, counter-UAV radar is forming a future development path of "more precise perception, smarter response, and more flexible application," while also driving the reconstruction of airspace security rules.
Multi-band Coordination Deepening 01
The core breakthrough of future counter-UAV radar will focus on the deep integration of spectrum optimization and intelligent algorithms. Facing micro UAV targets at the 0.01 square meter level, single-band radar can no longer meet detection requirements, making multi-band coordination an inevitable choice.
The Omega360 system jointly developed by Italy's Fincantieri Group and a Qatari company adopts a solution combining high-resolution Doppler radar and AI algorithms. Through high-precision positioning in the Ku band and long-distance detection in the S band, it achieves stable capture of small and micro targets. This multi-band adaptive switching technology can automatically adjust operating frequencies based on target characteristics and environmental interference, like equipping the radar with an "intelligent filter," maintaining detection stability in complex electromagnetic environments.
Micro-Doppler feature recognition will become the key technology to distinguish drones from birds and clutter. Denmark's XENTA-C radar successfully solved the identification challenge between hovering drones and ground clutter by detecting unique frequency features generated by rotors. This recognition method based on the physical characteristics of targets has higher anti-interference capability than traditional speed and trajectory analysis. In the future, with the evolution of machine learning models, radar systems will be able to extract more subtle features from echo signals, such as drone material characteristics and the number of propellers, achieving precise identification of drone models and even predicting their payload types and potential threat levels.
The popularization of software-defined radar will accelerate technological iteration. The US Marine Corps MADIS MK2 system achieves precise detection of small and micro targets by integrating the RADA RPS-42 radar. This modular design allows radar performance to be continuously improved through software upgrades without hardware replacement. It is expected that by 2030, mainstream counter-UAV radars will have "plug-and-play" algorithm update capabilities, enabling rapid response to new UAV technological iterations and forming a dynamic confrontation cycle of "threat evolution - algorithm upgrade - defense enhancement."
Multi-mode Fusion Adaptation
The core future trend is evolving from single detection to integrated "detection - countermeasure."

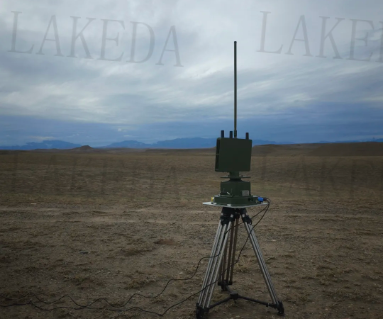

Wuhan Leikeda Owl Counter-UAV System Real Scene Application Image
For example Wuhan Leikeda ’s Owl Counter-UAV System achieves effective detection, identification, control, and interference of drones by comprehensively utilizing radar detection 、 spectrum analysis 、 deception and jamming technologies, thereby ensuring public safety, maintaining social stability, and promoting the healthy development of the UAV industry.
The "Owl" counter-UAV system consists of four parts: reconnaissance and control unit, electromagnetic interference unit, support frame, and command and control unit. Within 2-3.5Km it uses radar and spectrum dual detection and identification. Within 1KM it performs deception and radio interference with a high-gain directional antenna, single-channel power of 25-30 watts, concentrated energy, precise interference distance of 1-5 kilometers. The system automatically executes defense plans, initiating strike or navigation deception measures upon detecting unauthorized drones, ensuring regional security.
Image sourced from the internet. If there is any infringement, please contact the editor to delete.
Distributed networking technology for swarm attacks will also mature and be implemented. Poland's APS company's FIELDctrl ADVANCE radar uses 3D MIMO active phased array technology to simultaneously track hundreds of low-altitude targets. This multi-node collaborative detection capability is key to countering UAV "swarm" attacks.
In the future, through 5G/6G communication networking, distributed radar nodes will achieve real-time data sharing and collaborative decision-making, forming a three-dimensional defense network covering tens of square kilometers. This will enable global optimization in target identification, firepower allocation, and other aspects, improving defense efficiency by several times.
The future development of counter-UAV radar is not only a competition of technology but also a game of effects and the formulation of rules. From micron-level signal feature recognition to cross-domain collaborative defense networks, from individual portable devices to integrated air-space systems, every step of technological evolution is reshaping the low-altitude security landscape. In this endless game of offense and defense, only by organically combining technological breakthroughs, scenario demands, and ethical norms can a truly sustainable low-altitude security ecosystem be built to safeguard the prosperous development of the low-altitude economy.
